WATNOVA HVAC Corner Condensate Pump, One-Piece Pump & Reservoir Design, Easy Left or Right Installation, 4.75 GPH 27 ft Lift, Ultra Quiet 19 dB,100–240V Safety Shutoff
4.0 (141 items)
Limited Time SaleUS$65.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211710511 | Release Date | 2026/04/04 | List Price | US$43.60 | Model Number | 211710511 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- One-Piece Pump & Reservoir Design: The WATNOVA W5C features an integrated pump and reservoir in one compact unit, eliminating external connecting tubes between components. This simplified design reduces installation complexity and improves reliability for mini split air conditioner drainage systems.
- Easy Left or Right Installation: Designed for flexible installation, the pump can be mounted on either the left or right side of the indoor unit, allowing HVAC technicians to adapt to different installation layouts and jobsite conditions.
- Corner Design for HVAC Duct Slots: The compact corner configuration fits neatly inside standard mini split trunking duct slots, allowing the pump to be installed discreetly alongside refrigerant lines and electrical wiring for a clean and professional appearance.

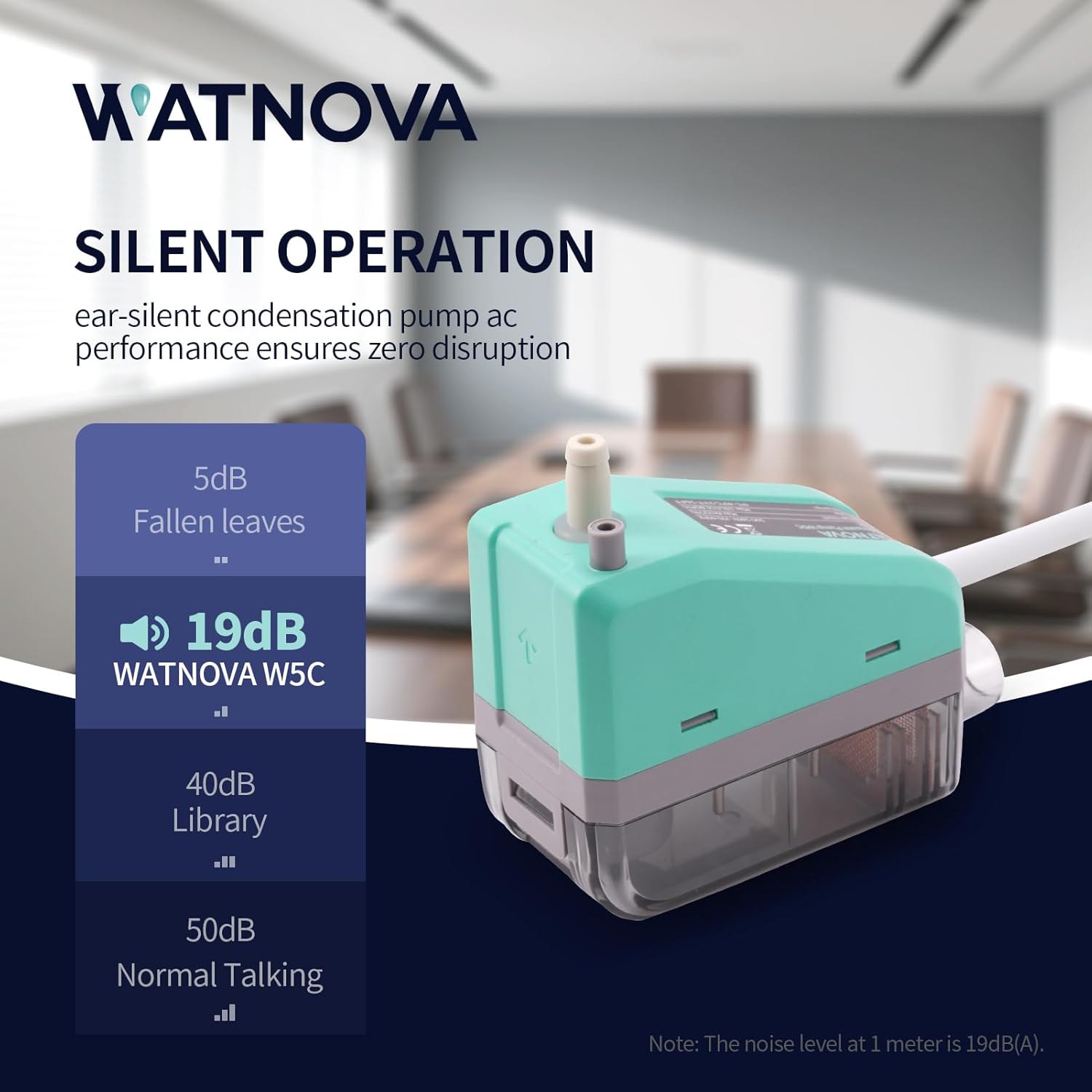

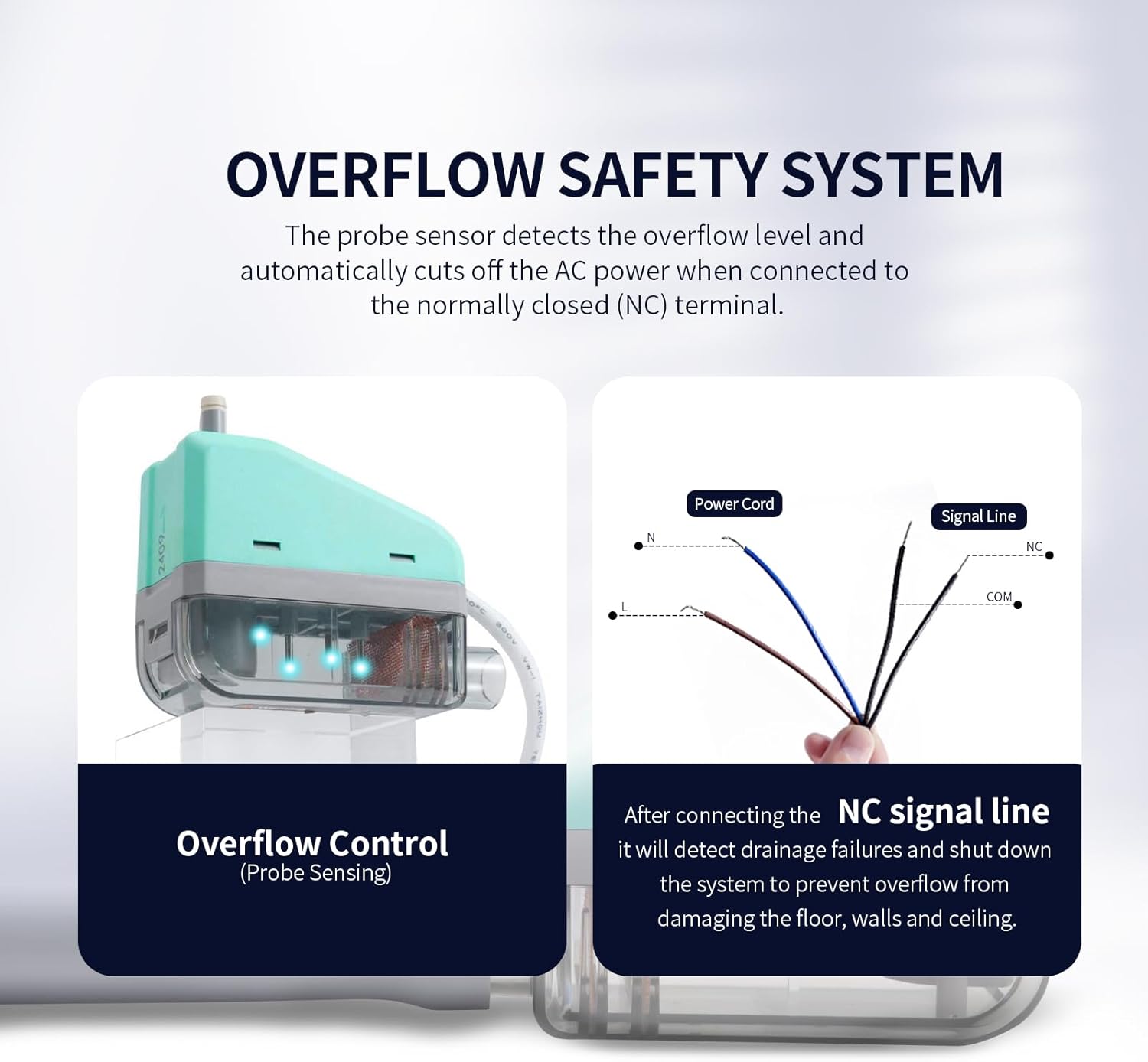

- Ultra Quiet Performance with Overflow Protection: Operating at only 19 dB, the pump provides silent performance while delivering 4.75 GPH drainage capacity with a maximum lift of 27 ft. The built-in probe sensing overflow control detects drainage failures and, when connected to the NC signal line, automatically shuts down the system to prevent overflow from damaging floors, walls, or ceilings.
- Complete Kit & Pro Maintenance: Includes all installation accessories for quick setup. Pro Tip: Clean every 3–6 months (video guide available) to help maintain optimal performance and extend the service life of the condensate pump.
| Color | Grey |
|---|---|
| Voltage | 100240 Volts |
| Flow Rate | 0.08 Gallons Per Minute |
| Brand Name | WATNOVA |
| Unit Count | 1.0 Count |
| Item Weight | 1.1 Pounds |
| Manufacturer | WATNOVA |
| Model Number | W5C |
| Power Source | Corded Electric |
| Material Type | Plastic |
| Product Style | 4.75GPH Corner |
| Included Components | Drain hose 1.5m/5' length (6mm /1/4"i/d), Inlet hose 35mm/1.4" length (6mm /1/4"i/d), Pagoda adapter*2; Expansion screws*3, Silicone Tube 90mm/3.5" length (13.5mm /9/16"i/d); Velcro 25&70mm, Ties 100 *3mm*2; Ties 300*5mm*4 |
| Maximum Lifting Height | 27 Feet |
| Item Dimensions L x W x H | 6.3"L x 4.33"W x 3.86"H |
