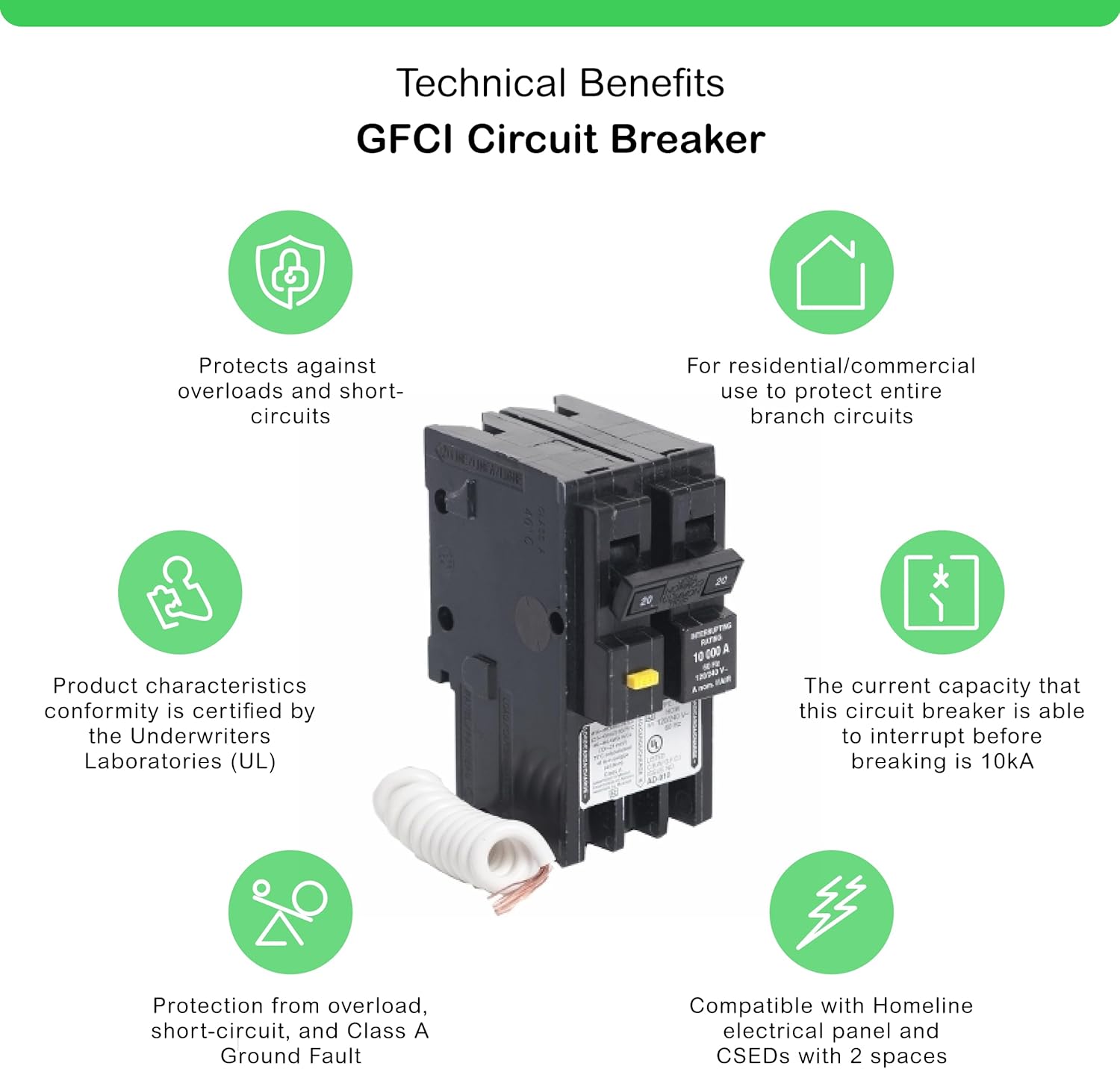

Square D - HOM220GFIC Homeline Circuit Breaker, 20-Amp, 120/240V, 2-Pole, GFCI, Plug-In Mount
4.4 (54 items)
Limited Time SaleUS$57.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215625685 | Release Date | 2026/04/12 | List Price | US$38.00 | Model Number | 215625685 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Square D Homeline 20 Amp GFCI Circuit Breaker offers reliable residential circuit protection, safeguarding against overloads and short circuits. Designed for easy installation, its plug-on neutral design fits seamlessly into Square D Homeline load centers and CSEDs, taking up two spaces and allowing for a fast, hassle-free setup. This double-pole breaker operates on 120/240V AC circuits, commonly used for appliances which require larger amounts of power (clothes dryers, ranges, furnaces, air conditioners, etc.). This Homeline ground fault circuit breaker provides overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. Compact yet powerful, it features a 20A current rating, 10kA breaking capacity, and a space-saving design. UL-listed for safety and reliability, this circuit breaker is an essential addition to any residential electrical system. Dimensions: 3.13" H x 2" W x 2.98" D.
- RESIDENTIAL CIRCUIT PROTECTION: Square D Homeline Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection; Clamp terminal will accept 2 wires with a wire range of 14 AWG to 8 AWG copper or aluminum wire
- EASY TO INSTALL: Pigtail neutral design connects the breaker's internal components to the neutral bar, facilitating power-up in Homeline load centers with two spaces; Breaker can also be used in plug on neutral load centers
- 20 AMP TWO-POLE CIRCUIT BREAKER: This circuit breaker delivers 60A protection with a two-pole configuration, ideal for larger appliances like dryers, ranges, and air conditioners that require 240V branch circuits
- GFCI PROTECTION: Ground fault circuit breaker provides overload and short circuit protection, combined with Class A ground fault protection; Class A ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more
- SPECIFICATIONS AND RATINGS: Dimensions - Height: 3.13 in (79.50 mm); Width: 2 in (50.8 mm); Depth: 2.98 in (75.69 mm); Current Rating - 20A; Voltage - 120/240V AC; Breaking Capacity - 10kA; 2 Poles; Certifications - UL-listed, HACR-rated
| UPC | 785901163701 |
|---|---|
| Model | HOM220GFIC |
| Voltage | 240 Volts |
| Brand Name | Square D by Schneider Electric |
| Unit Count | 1.0 Count |
| Item Weight | 1.1 Pounds |
| Part Number | HOM220GFIC |
| Manufacturer | Square D by Schneider Electric |
| Mounting Type | Plug-In Mount |
| Current Rating | 20 Amps |
| Number of Poles | 2 |
| Circuit Breaker Type | GFCI |
| Warranty Description | Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Item Dimensions D x W x H | 2.98"D x 1"W x 3.13"H |
| Global Trade Identification Number | 00785901163701 |
