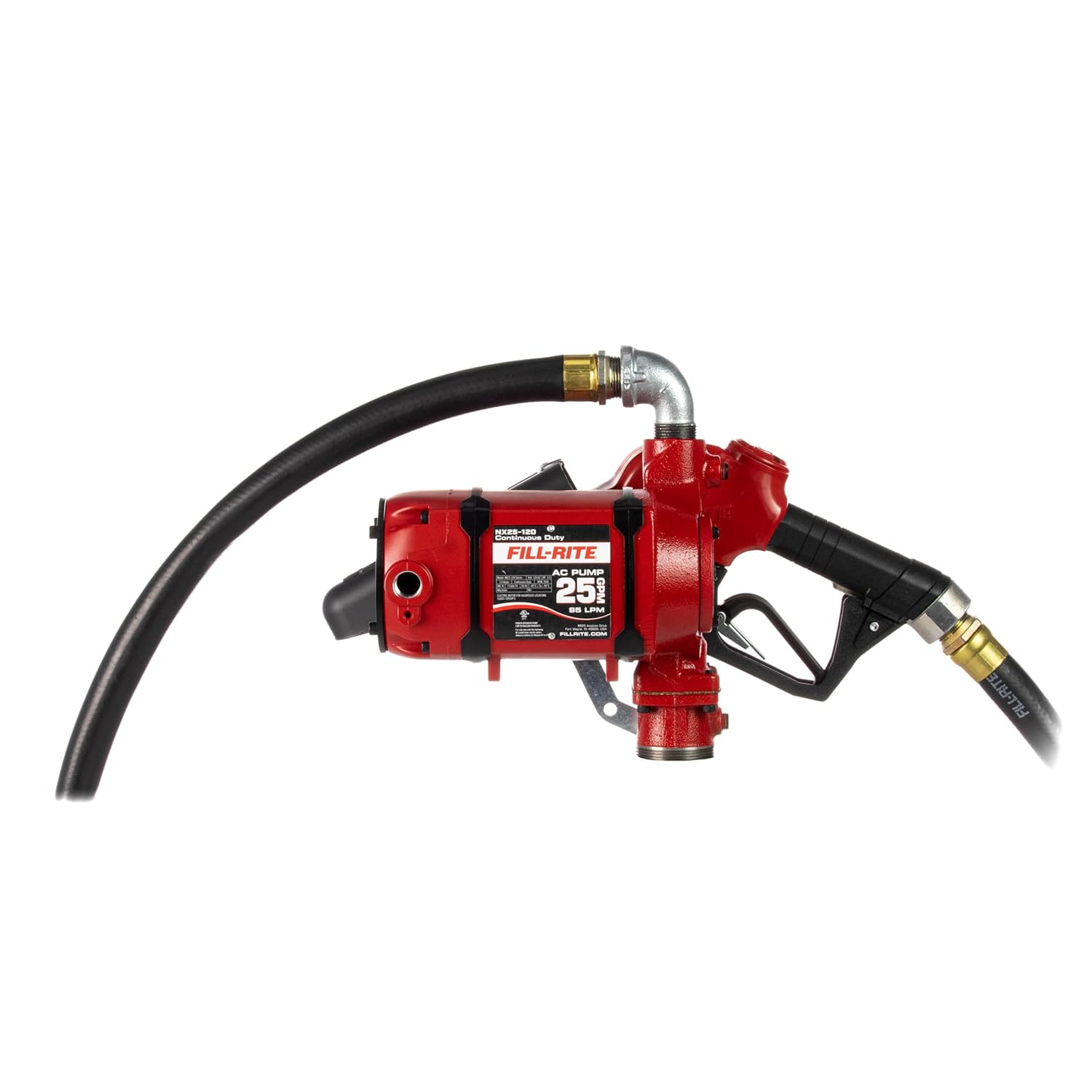

Fill-Rite NX25-120NF-AA 120V 25 GPM Foot Mounted 1" Outlet Fuel Transfer Pump w/Discharge Hose & Auto Nozzle (Red)
4.8 (41 items)
Limited Time SaleUS$848.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212571575 | Release Date | 2026/04/06 | List Price | US$565.60 | Model Number | 212571575 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Fill-Rite NX25-120NF-AA is a high-performance 120V AC fuel transfer pump designed for demanding commercial, agricultural, and industrial fueling applications. With a true 25 GPM flow rate, this pump provides fast, reliable fuel transfer for fleets, bulk tanks, and high-use fueling stations. Built for continuous-duty operation, the NX25 features advanced variable speed motor technology that automatically adjusts to operating conditions. This improves suction lift, reduces power consumption, and helps extend component life during extended fueling cycles. The foot-mount configuration allows secure, permanent installation on fueling islands or concrete pads, making it ideal for fixed fueling systems. The pump includes an ultra-high-flow automatic shutoff nozzle, a nozzle boot, and an 18-foot UL-listed grounded fuel hose to support safe and efficient dispensing. Additional features such as remote on/off capability and automatic power-down after inactivity improve usability and energy efficiency. A durable powder-coated housing protects the pump from corrosion and harsh environmental conditions. Compatible with a wide range of fuels—including diesel, gasoline blends up to E15, kerosene, and biodiesel blends up to B20—the Fill-Rite NX25-120NF-AA delivers professional-grade fueling performance for high-volume applications. This is an authentic product from the trusted Fill-Rite® brand. It's made in the USA with globally sourced materials and built for quality, reliability, and safety.
- CONTINUOUS DUTY: Transfer fuel all day with no duty cycle and ability to "run dry"
- LIGHTWEIGHT DESIGN: Makes pump easy to manueaver during installation
- TRUE FLOWRATE: 25 GPM is based on rates measured at the nozzle, not the outlet
- INTELLIGENT TONES: Specific tones alert operator to where attention is needed on the pump
- VARIABLE SPEED MOTOR: Automatically adjusts fo peak performance with improved suction lift
| UPC | 089404247549 |
|---|---|
| Fit Type | Universal Fit |
| Gas Type | diesel,ethanol,gasoline,kerosene |
| Brand Name | Fill-Rite |
| Unit Count | 1.0 Count |
| Item Weight | 42 Pounds |
| Manufacturer | Fill-Rite Company |
| Body Material | Aluminum OR Stainless Steel OR Cast Iron |
| Material Type | Stainless Steel |
| Mounting Type | Foot Mount |
| Product Grade | New |
| Product Style | 120V Standard Accessories (Foot) |
| Connector Type | FNPT |
| Operation Mode | Automatic |
| Item Dimensions | 9.5 x 10 x 6.5 inches |
| Specification Met | UL, Fluid Compatibility |
| Auto Part Position | Front |
| Included Components | 1" x 18' Discharge Hose, 1" Ultra High Flow Automatic Nozzle |
| Inlet Connection Size | 1 1/4" Inches |
| Inlet Connection Type | Female NPT Threads |
| Part Interchange Info | replacement |
| Outlet Connection Size | 1" Inches |
| Outlet Connection Type | FNPT |
| Manufacturer Part Number | NX25-120NF-AA |
| Compatible with Vehicle Type | Car, Truck, Motorcycle |
| Manufacturer Warranty Description | 2 Years |
