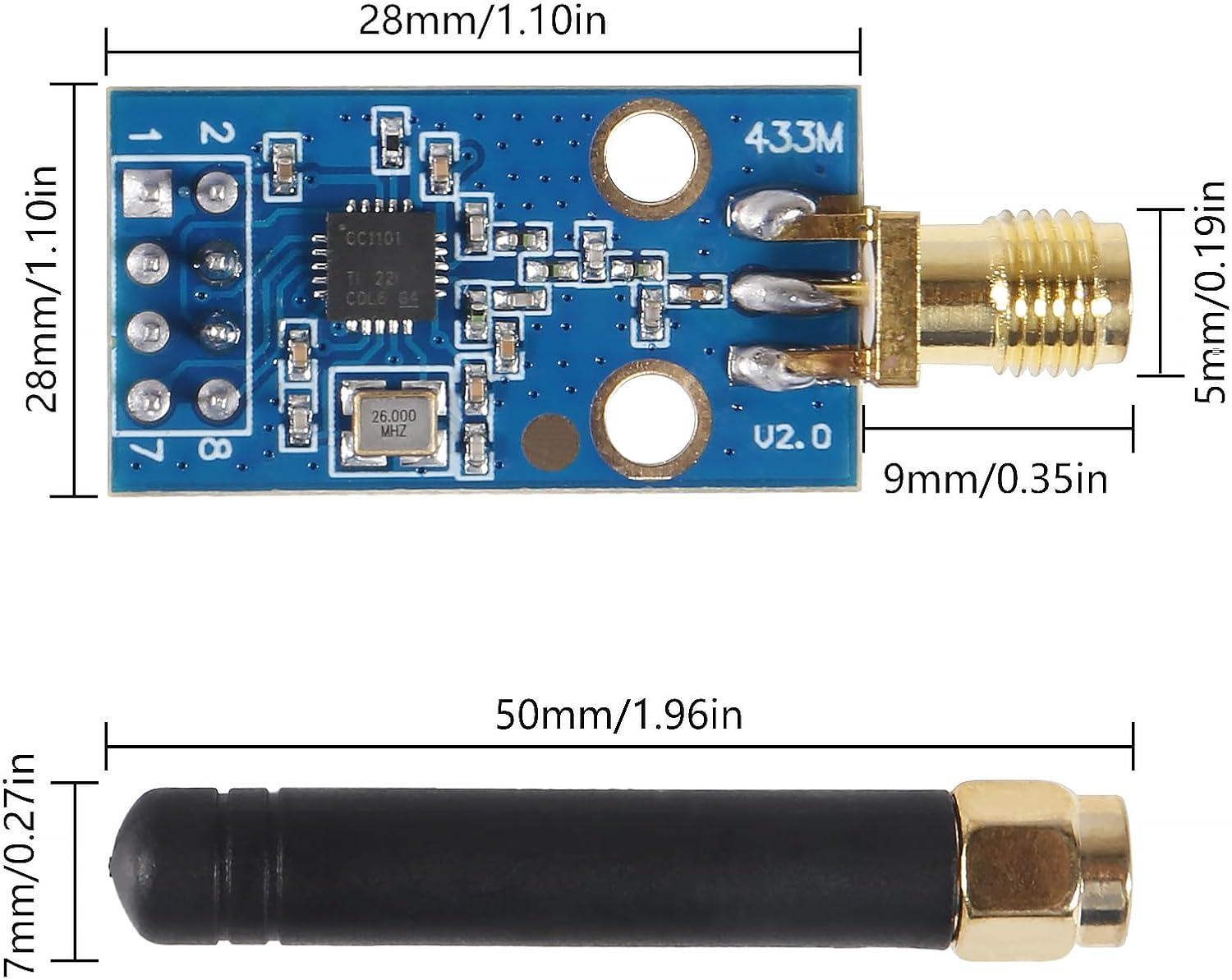

3pcs CC1101 Wireless Module with SMA Antenna Wireless Transceiver Module 315/433/868/915MHZ for Raspberry Pi

CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module Continuous frequency band expansion: CC1100: 400-464 MHz and 800-928 MHz CC1101: 387-464 MHz and 779-928 MHz Working voltage: DC 1.8V-3.6V Working frequency: (module: 387-464MHZ) Default working frequency: 433Mhz Maximum instantaneous working current: <30mA; Maximum transmit power: 10mW (+10dBm) Support 2-FSK, GFSK and MSK modulation; Receiver sensitivity -110dBm, 1200 baud The minimum operating speed is 1.2kbps, the maximum is 500kbps Independent 64-byte RX and TX data FIFO buffer Built-in hardware CRC error detection to ensure reliable data transmission Support RSSI signal strength detection and carrier sensing functions Low power consumption Mailing address (256) Working frequency can be programmed via SPI Programmable output power, supporting all frequencies up to +10 dBm WOR function can be set to standby, proportional receiving state timing switch machine time, reduce power consumption Fast frequency synthesizer with proper frequency hopping system Package list: 3 * Frequency Transceiver Module CC1101 3 * Antenna

• CC1101 wireless RF transceiver 315/433/868/915MHZ + SMA antenna wireless module made of high-quality materials, durable.
• CC1101 supports a wide supply voltage range of 1.8V to 3.6VDC, ensuring compatibility with different power sources.
• Instantaneous maximum working current: <30mA; Maximum transmit power: 10mW (+10dBm).
• The CC1101 module has enough transmitting power, good spectrum characteristics, small harmonics, small channel crosstalk and ultra small volume.
• This wireless transceiver module is an ideal choice for applications that require wireless connectivity, such as IoT devices, remote control systems, and wireless sensor networks.
