3M(TM) Scotchlok(TM) Butt Connector Vinyl Insulated, MVU18BCX, (Pack of 100)
4.7 (81 items)
Limited Time SaleUS$29.74 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211031938 | Release Date | 2026/04/04 | List Price | US$19.83 | Model Number | 211031938 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

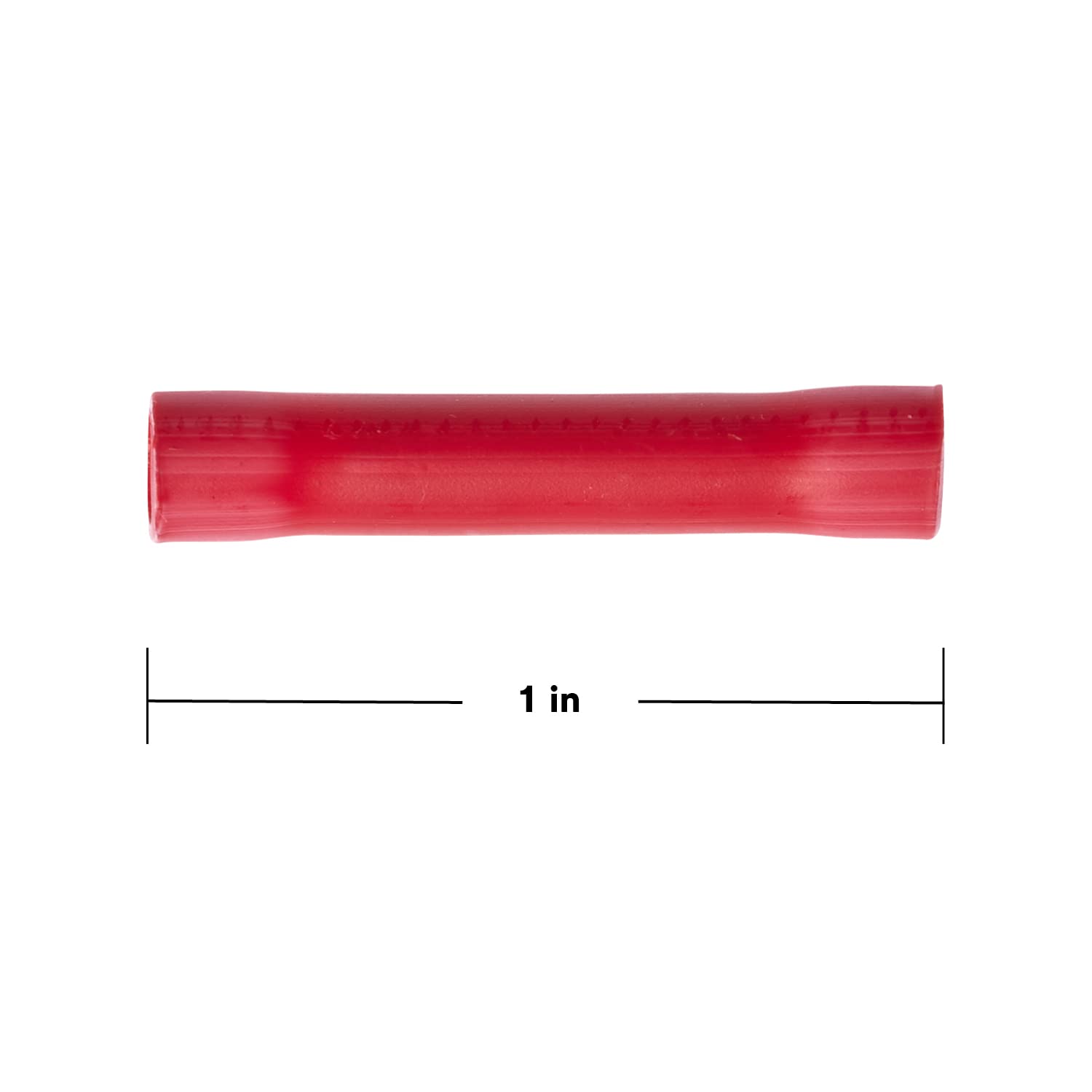

3M™ Scotchlok™ Butt Connector MVU18BCX with built-in wire stop for correct positioning offers easy insertion of wires. This vinyl-insulated, butted-seam barrel provides a secure fit and reliable performance. It supports a wire range of 22-18 AWG. This connector has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the cable into position while providing electrical contacts and mechanical stress relief at the point of insulation. The flared, vinyl-sleeve insulation provides easy crimping, the electrolytic copper construction provides good conductivity, and tin plating offers corrosion resistance. This connector can withstand a temperature range of -40 to 221 degrees F (-40 to 105 degrees C). The connector is UL Listed and CSA Certified. 3M™ Scotchlok™ Butt Connector MVU18BCX is perfect for your wire positioning and insulation needs.
- WIRE RANGE: 22-18 (AWG)
- BUTTED SEAM: Provides a secure fit with butted seam barrel

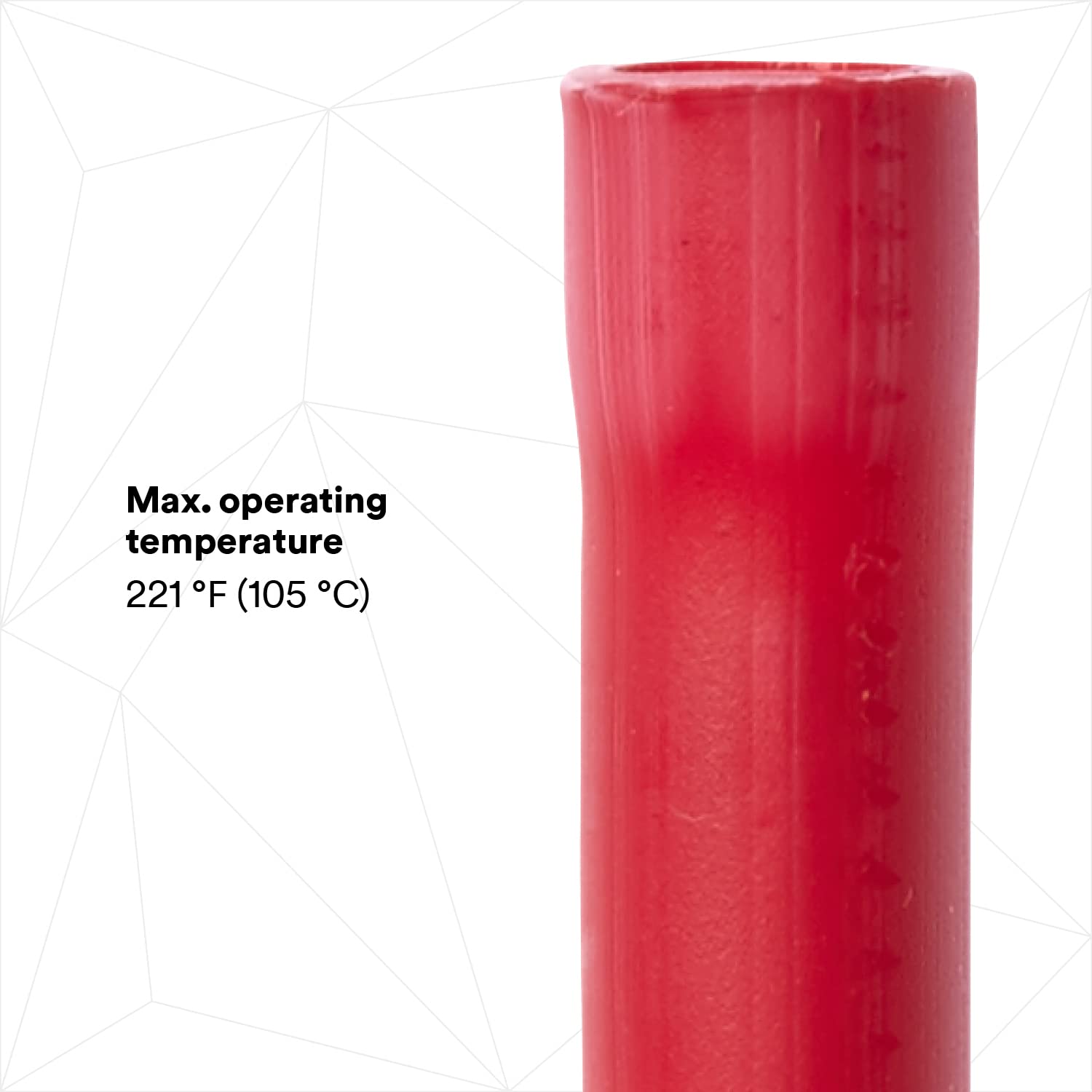

- MAX. OPERATING TEMPERATURE: 221 °F (105 °C)
- INSULATOR MATERIAL: Vinyl insulated
- TERMINAL MATERIAL AND PLATING: Features ETP copper terminal material and tin plating
- UL LISTED/CSA CERTIFIED: UL Listed and CSA Certified for use on stranded copper (AWG) wire only
- UL STANDARD: UL Standard No. 486C, 3M File No. E23438
- CSA CERTIFIED: Standard No. 22.2 No. 0.65, 3M File No. LR22190
- For industrial/occupational use only. Not for consumer sale or use
| UPC | 051128588178 |
|---|---|
| Color | Red |
| Gauge | 18.0 |
| Model | MVU18BCX |
| Terminal | Butt Terminal |
| Stud Size | 18 gauge |
| Brand Name | 3M |
| Unit Count | 1.0 Count |
| Manufacturer | 3M |
| Material Type | Copper |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Specification Met | UL |
| Temperature Rating | 221 degree fahrenheit |
| Insulation Material Type | Polyvinyl Chloride |
| Global Trade Identification Number | 00051128588178 |
