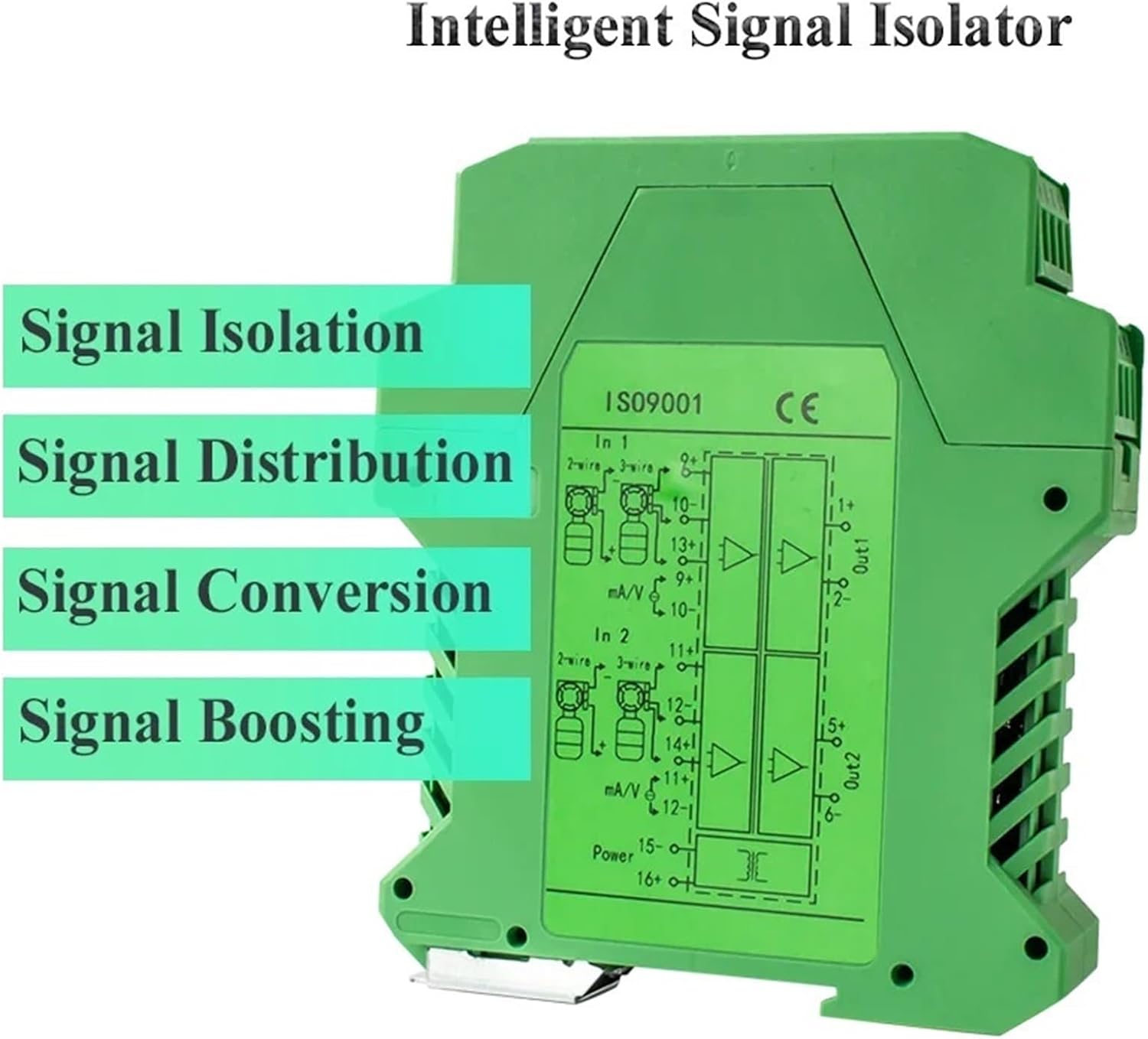

1PCS Analog Signal Isolator 4-20mA 1 in 1 Out 0-10V to 4-20mA Signal Isolator DC24V Signal Converter Isolator(1 Input 1 Output,4-20MA Out_DC24V Power Supply_1-5V Input)

Isolation TransformersIntroduction:<;1>.GLGsignal isolator provides isolated power distribution power supply for transmitter, meanwhile it isolates and converts the current signal to control room, and DCS etc.<;2>.Input terminal is in common use for current ,2-wires and 3-wires. The input, output and power are isolated from each other by adopting highly efficient magnetoelectric isolation technology interiorly.<;3>. 24V or AC 220V power supply.Standard 35mm DIN rail independent mounting.<;4>. GLGhas 6 type channels, 1 in/1 out, 1 in/2 out, 1 in/3 out, 1 in/4 out, 2 in/2 out, 2 in/4 out, input and output signal can be .FEATURES:High accuracyHighlinearityStandard 35mm DIN Rail Installtion, strong versatilityStrong anti-interferenceParameters can be customizeTechnical parameters:Power SupplyPower SupplyDC24V,±10% or AC85-265VCurrent Consumption50mA(1 in 1 out,24V power supply, output 20mA);70mA(1 in 2 out,24V power supply, output 20mA);100mA(2 in 2 out,24V power supply, output 20mA);InputInput Signal4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Input BurdernCurrent CT0.2VAInput Impedance50OutputOutput Signal4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Output Load ResistanceRL500(output current signal);RL10K(output voltage signal);Output Ripple0.5%ROOther ParametersAccuracy;±0.1%F.S.Respond Time<;10msTemperature Drift0.005%F.S./ (-20~+55)Isolation intensity1500V AC/1min(between input-ouput-power)Insulation resistance100M(between input-ouput-power)Overload capacitywithstand double rating(continous),10 times rating(10s)Working Temperature & Humidity<;80%humidity(non condensing state)Storage Temperature & Humidity<;70%humidity(non condensing state)Certifications==========Hign-concerne
